Table top cutting-off machine 305 mm D27112

Table top cutting-off machine 305 mm D27112
  • Table top cutting-off machine 305 mm D27112
  • Table top cutting-off machine 305 mm D27112

Table top cutting-off machine 305 mm D27112

Codice Prodotto: D27112

Table top cutting-off machine 305 mm D27112
Price:
€829.60PCS
Listing:
You Save:
(%)

Disponibili: 0

Product is out of stock

Description

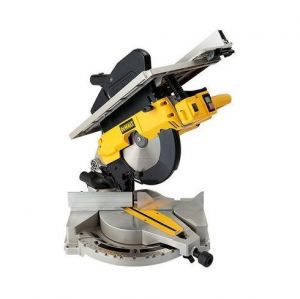

This Dewalt D27112 12"/305mm table top slide compound mitre saw has a lightweight but powerful 1600w motor for demanding applications. The 23kgs unit weight allows for maximum portabilty, with 285mm crosscut capacity gives huge versatility. This combination saw has both crosscut and ripping capabilities, and an innovative guard design maximises safety in use. The machine incorporates a slide mechanism to increase cross cut capacity. A precision cast aluminium base and table top guarantees high precision cuts in both cutting modes, a high and stable back fence increases accuracy in all mitre applications, and its unique design gives excellent visibility in both rip and mitre modes. Finally an all-metal upper fence with positive cam lock for makes for maximum accuracy.

Equipment:

  • disk
  • push stick
  • spanner
  • parallel guide
  • disk protection with suction
  • wrench
  • vice.

Datasheet

Technical Data

Power Input 1600 Watt
Power output 1370 Watt
Speed 3650 Giri/min
Wheel Diameter 305 mm
Wheel Hole 30 mm
Max Head inclination 45°
Max cutting angle shot (left-right) 60/50 °
Max Cutting capacity angle 90°/ incl. 45° (L x H) 285×50 mm
Max Cutting capacity angle 90°/ incl. 90° (L x H) 285×90 mm
Max Cutting capacity angle 90°/ incl. 90° (L x H) 285×90 mm
Max Cutting capacity angle 45°/ incl. 90° (L x H) 200×90 mm
Max Cutting capacitiy angle 45°/ incl. 90° (L x H) 200×90 mm
Max Cutting capacity angle 90°/ incl.45° (L x H) 285×50 mm
Max Cutting capacity angle 45°, incl. 45° (L x H) 200×50 mm
Max cutting capacity as bench saw 90° 51 mm
Wheight 23 Kg
Deepness 980 mm
Lenght 580 mm
Height 710 mm
Vibration 1.5 m/s²
Acoustic power 109 dB(A)
Acoustic Pressure 97 dB(A)
Max trimming capacity (Right) 200 mm
Max trimming capacity (left) 220 mm
