Description

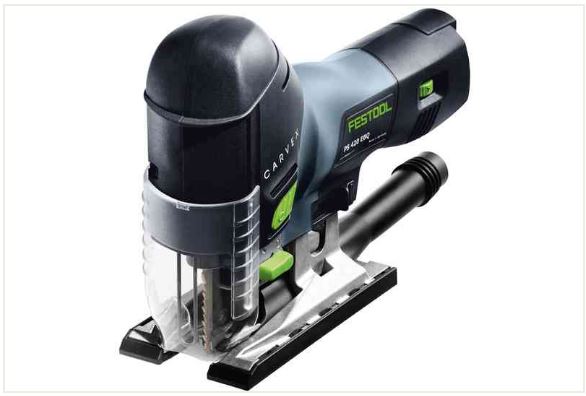

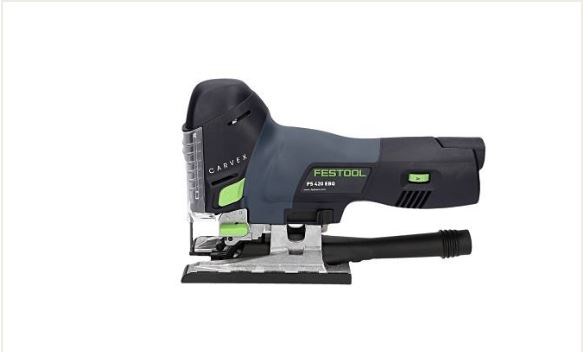

Pendulum jigsaw CARVEX PS 420 EBQ-Plus
Lightweight. Handy. Unbeatable profile-cutting capacity.

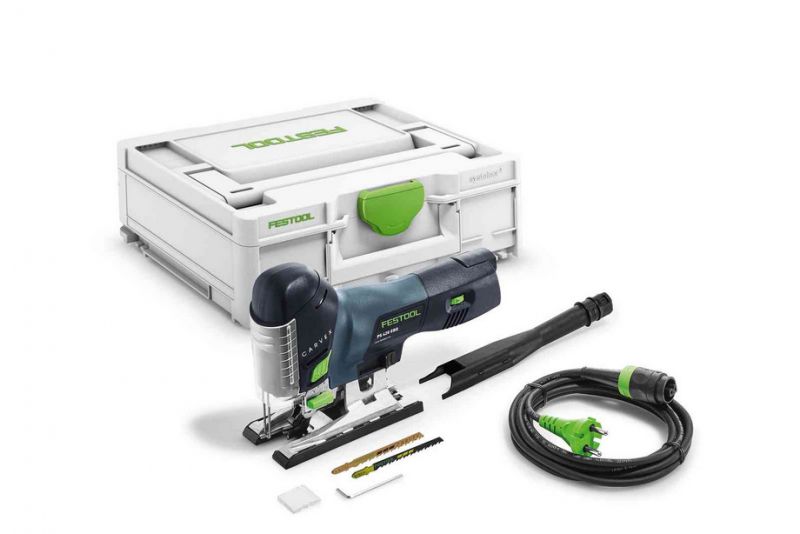

Items included PS 420 EBQ-Plus
-
2x saw blade
-
splinterguard
-
in SYSTAINER SYS 3 M 137
Ergonomic, lightweight and handy – work quickly and comfortably in any position with the CARVEX. The machine operates at 3800 strokes per minute for inimitably powerful cutting strokes and unbeatable profile-cutting capacity. It is common knowledge that power only becomes a valuable resource when it is combined with exceptional precision. That is exactly the approach we have been taking with a redesigned hammer guide for an unprecedented degree of accuracy. The parallel adjustable guidance jaws keep the saw blade on track and guarantee maximum precision. It has all the typical characteristics of a CARVEX, but the first time you use a machine from the new CARVEX PS 420 generation, you will undoubtedly feel the difference.
-
Excellent behaviour in curves thanks to threefold saw blade guide and rigid lifter rod
-
Fast, tool-free changing of tables, baseplates and saw blades
-
Simple handling thanks to the softgrip and ergonomic design
-
Electronic switch-on/off on both sides, reachable in every grip position
-
Easily visible scribe mark through stroboscope light and powerful extraction
-
Tool length can be shortened with swivel-mounted plug it-cable
-
Powerful cutting stroke for rapid working progress
-
Low weight to save energy: 1.9 kg
Datasheet
Main applications
-
Cut-outs for sinks and kitchen hobs
-
Trimming work on furniture, kitchens, for interior fitting
-
Cutting circles and curves
-
Coping end strips
-
Cutting workpieces to length
-
Edge notching on beams
-
Cutting from below
EC-TEC motor
The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
Jigsaw with precision guidance
Long-wearing carbide jaws guide the saw blade directly over the cutting location. For precise work results.
MMC digital electronics
Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
Guide system
Patented guide system for safe guidance of saws and router bits.
Splinter guard
Patented splinterguard for splinter-free cuts on both sides when sawing.
