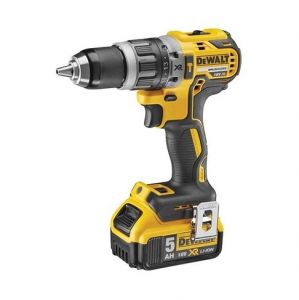

18V XR Li-Ion Brushless Compact Hammer Drill Driver DCD796P2
Price:
€366.00PCS
Listing:
You Save:
(%)

Description

Overview

  • 18V XR Li-Ion compact hammer drill driver featuring NEW 5.0Ah XR Li-Ion battery technology
  • Brushless Motor Technology for excellent efficiency
  • Ultra compact, lightweight design allows use in confined spaces
  • Two speed all metal transmission for increased runtime and longer tool life
  • Drill Driver and Hammer feature for multiply applications
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Intelligent trigger design allows for total control of application
  • NEW 3 Position LED torch, High/Medium/Low settings with High output 20min LED delay lighting up your work place
  • Improved ergonomic design with rubber grip over mould improving users comfort
  • Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
  • Steel belt hook and magnetic bit holder ensures strong storage solutions
  • Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
  • Multi voltage charger for use with 18V, 14.4V and 10.8V XR Li-Ion battery packs

Standard

  • 2 x 5.0Ah Li-Ion battery pack with state of charge indicator
  • Battery charger
  • Belt hook
  • Magnetic bit holder
  • TSTAK heavy duty kitbox

Datasheet

Battery chemistry XR Li-Ion
Voltage 18 V
Battery Capacity 5.0 Ah
Max Torque (Hard) 70 Nm
Max Torque (Soft) 27 Nm
Power Output 460 Watt
No Load Speed 0-550/2000 rpm
Beats per Minute 0-9350/34000 bpm
Chuck Capacity 1.5-13 mm
Max. Drilling Capacity [Wood] 40 mm
Max. Drilling Capacity [Metal] 13 mm
Max. Drilling Capacity [Masonry] 13 mm
Weight 1.8 kg
Length 190 mm
Height 203 mm
Width 67 mm
Sound Pressure 89 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Sound Power 100 dB(A)
Sound Power Uncertainty 3 dB(A)
Hand/Arm Vibration - Drilling into metal <2.5 m/s²
Uncertainty K 1 (Vibration) 1.5 m/s²
Hand/Arm Vibration - Hammer drilling into concrete 11.5 m/s²
Uncertainty K 2 (Vibration) 1.6 m/s²
Hand/Arm Vibration - Screw driving without impact <2.5 m/s²
Uncertainty K 3 (Vibration) 1.5 m/s²
No Load Speed (Drilling/ Driving Mode) 0-550/2000 rpm
No Load Speed (Hammer Mode) 0-550/2000 rpm
