Centre panel connector MSV D8/25 The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.
Price:
€89.44Package
Listing:
€105.23Package
You Save:
€15.79Package (15%)

Description

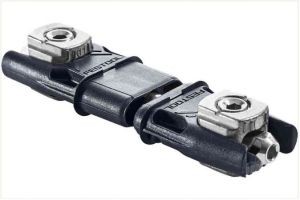

Centre panel connector MSV D8/25

The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.

The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

  • The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
  • The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
  • The flush-screwed fixture elements protect each furniture component from being scratched
  • Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
  • The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
  • for 25 centre panel joints with the DF 500
  • drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture
  • the DOMINO/DOMINO MSV D8/25 connector is positioned both in the cupboard panel and the base of the structure with the DOMINO jointer DF 500

VIDEO



Datasheet

Items included

  • 25x bolt with external thread for DOMINO centre panel connector
  • 25x bolt with internal thread for DOMINO centre panel connector
  • 50x Plastic trays
  • 50x Cross anchor with threaded pin
  • without cover caps
  • in carton

Technical data

  • Joint fixture (8 mm DOMINO dowel cross-cuts) D8
  • Panel thickness 18 – 28 mm
  • DOMINO routing depth for side part 15.00 mm
  • DOMINO routing depth for base part 28.00 mm
  • Qty. in pack 25.00 Pieces
  • Drilling diameter in base part 15.00 mm
